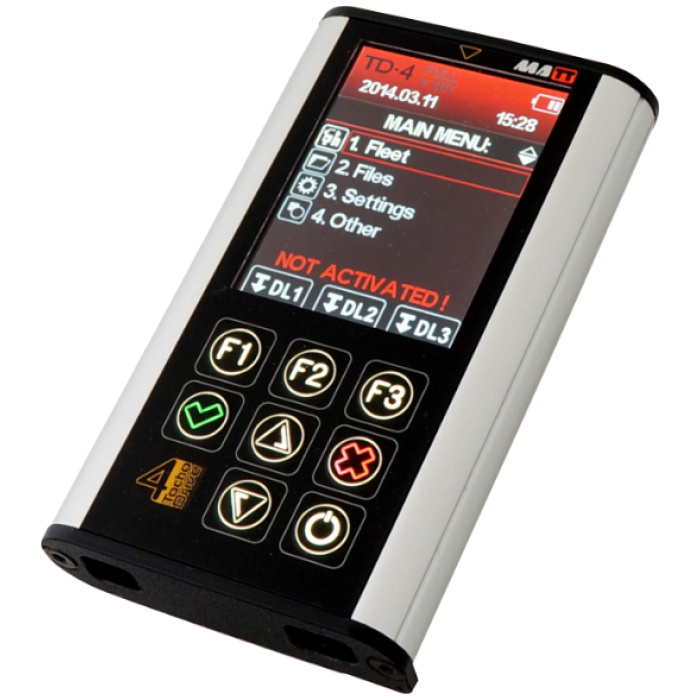

The TachoDrive4 (TD4) is a new generation professional device for downloading, analysing and archiving data from digital tachograph and driver card.
Software configurations:
1. TachoDrive4 STD: download data from driver card and tachograph mass memory, device configuration
2. TachoDrive4 FLEET: it has the functionality of TD4 STD, plus a reminder* of compulsory data download from driver cards and digital tachograph, the vehicles and drivers data base
3. TachoDrive4 PRO: it has the functionality of TD4 F, additionally it has the analysis of the data from driver card (infringements, graphic, summary and activities report)
4. Tachodrive4 PRO C: designed for controlling authorities. It has the TD4 P functionality, additionally it has a module designed for controlling authorities (last inspection date, tachograph calibration date, events and infringements registered by the tachograph, company locks, speed diagram, manipulation test)
Hardware configurations:
1. TD4-0: device without the wireless data transmission module
2. TD4-B with Bluetooth module: wireless transmission of the downloaded files to a PC or smartphone, printing reports on a wireless BT printer
TD4 advantages:
compatible with all homologated digital tachograph;
built-in driver cards reader (reading the whole card takes about 1 minute)
colour, backlight LCD 2,8” 240×320 pixels display
intuitive TACHOMATT Yellow Light software and TD Configurator included
automatic malware removal function
wireless reports printing (Bluetooth function)**
wireless data transfer to mobile phones or PC (Bluetooth)**
power supply: built-in Li-Polymer battery, tachograph 12/24V, USB port
charging: USB port of PC, external charger
512 MB memory
build-in MEMS sensor – automatic screen rotation (ASR)
USB Full-Speed port (does not require any additional drivers in PC)
acoustic and visual signalisation of device activity (LEDs)
ergonomic, robust aluminium case, small dimensions
The set includes the following elements:
A cable for connecting with tachograph front socket
B cable for connecting with USB port of a PC
TACHOMATT Yellow Light (available on MATT webpage) software. It allows meeting the legal requirements for downloading and storing the data from digital tachographs and driver card. TACHOMATT Yellow Light lets the user preview driver activities from the last 28 days, working chart, verify the downloaded data as well as analyse it.
* in preparation
** option
Technical data:
dimensions: 121,1 x 71,5 x 19,3
weight: 215g
operating temperature range: -5OC ÷ +55OC
storage temperature: -25OC ÷ +70OC
protection rating: IP-40
power supply: built-in Li-Polymer battery
power consumption: max 900mW
ports: card reader slot | A for tachograph | B mini USB slave
PC system requirements
(only if TY Light or other
software is used)
Windows XP
Pentium III 800 MHz, 256 MB RAM, USB
